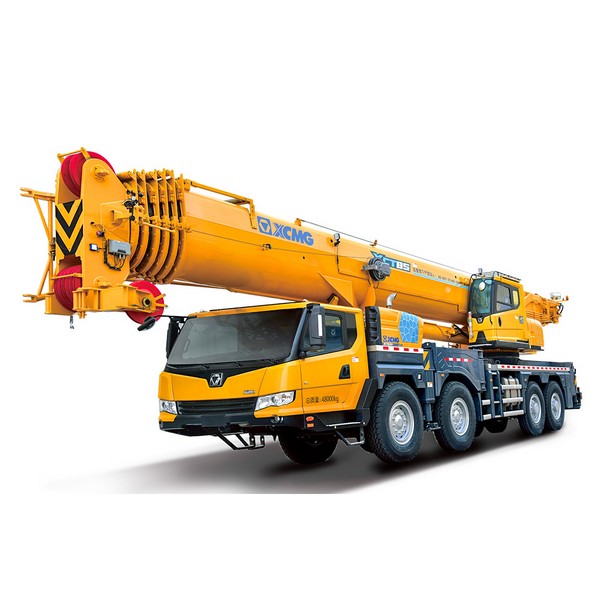

XCT85 truck with crane for sale

XCT85 truck with crane for sale

The XCT85 truck with crane for sale boasts a compact design and industry-leading performance.

Model: XCT85
Max. rated lifting capacity: 85t
Rated Power: 297/1900kW
Travel speed: 90km/h

描述

Product Introduction

The XCT85 truck with crane for sale boasts a compact design and industry-leading performance. The performance of lifting and driving has increased to the point where they currently outperform the competitors. The dual-pump confluence technology improves overall operational efficiency. Construction sites, urban redevelopment, transportation, ports, bridges, oil fields, mines, and other complex working environments all employ it.

Main Parameters

Item

Unit

Parameter

Overall length

mm

14960

Overall width

mm

2750

Overall height

mm

3990

Wheelbase

mm

2000+4000+1500/2000+4000+1350

Total mass in driving state

kg

47805/49805

Max. travel speed

km/h

90

Engine model

-

MC11.40-50/MC11.40-60

Engine rated power

kw/(r/min)

297/1900

Maximum grade

%

≥45

Max. rated gross lifting weight

t

85

Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.

Performance Characteristics

1. In the design stage, the structural finite element analysis method is used to optimize the important structural parts under all working conditions.
The weight of the whole machine is optimized during the design process, the product vehicle layout is reasonable, the structure is compact, and the overall optimization and matching degree are high. This makes the product more lightweight, flexible, and superior in performance.

2. The combined variable balance weight can meet the needs of different working conditions and maximize the performance of structural parts. The lifting performance of the medium and long boom is effectively improved by about 30%, and the limitation of the lifting performance of medium and large tonnage cranes with the change of boom length and amplitude is solved.

3. The design of the suspension device can greatly reduce the structure of the suspension cylinder and shorten the stroke of the cylinder. Installation and removal by wired remote control. The mid-position detection and positioning device of the control system can ensure the reliability of the installation and improve the installation speed.

4. Through the programmable controller, set the characteristics of the manipulation curve during installation, so as to meet the fretting requirements of the turning operation when installing the counterweight.

5. The steering hydraulic system is equipped with a selector valve and a restrictor valve to organically combine the steering hydraulic system with the emergency steering system. When the main circuit is working, the emergency pump is controlled by the selector valve and is in an unloading state to achieve high efficiency and energy saving. When the system assist is normally provided, the selection valve controls the emergency system to assist and ensure driving safety.
