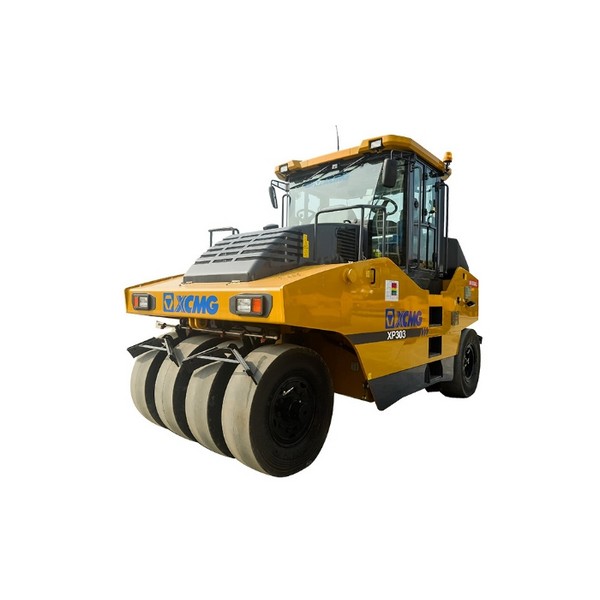

XP303 wholesale tired road roller Chinese supplier
The XP303 wholesale tired road roller Chinese supplier is a large-tonnage tire roller constructed to market requirements.
Model: XP303
Total weight: 30300kg
Rated power: 132kw
Dimensions (L×W×H): 4925*2530*3450mm
描述
Product Introduction
The XP303 wholesale tired road roller Chinese supplier is a large-tonnage tire roller constructed to market requirements that compacts laid materials with pneumatic tires as a working device. Asphalt pavement compacting, foundation layer, secondary foundation layer, dam, and filling engineering are the most prevalent applications. For high-grade motorways, airports, ports, dams, and industrial development projects, it is the ideal compacting equipment.
Main Parameters
Item | Unit | Parameter |
Operating weight | kg | 30300 |
Dimensions | mm | 4925*2530*3450 |
Max. gradeability | % | 30 |
Rated power | kw | 132 |
Engine calibration speed | r/min | 1800 |
Working width | mm | 2360 |
Number of tires | - | 4+5 |
Minimum turning radius (outside) | mm | 7620 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Performance Characteristics
Features of XP303 wholesale tired road roller supplier:
1. The power system is tuned with a Shangchai low-speed electronically controlled engine to achieve the optimal fuel consumption working area, a 10% overall fuel savings, and a 2-decibel noise reduction.
2. The compaction width is big and the compaction efficiency is excellent when front five and six rear tires are used.
3. The closed hydraulic drive system, which consists of an imported brand variable pump and variable motor, has a two-speed stepless speed shift and allows for flexible start and stop, reducing road material impact.
4. The revolutionary dual-circuit all-wheel braking system provides a short braking distance and is perfect for mountain operations to ensure human-machine safety.
5. It has a 360-degree surround view and a rear auxiliary braking system, which makes driving safer.
6. It can be fitted with oil spraying technology, which effectively avoids asphalt adhesion to the tire surface, increases road surface smoothness, and removes the risk of manual oiling.
- All the spare parts of the XP303 wholesale tired road roller are available.
