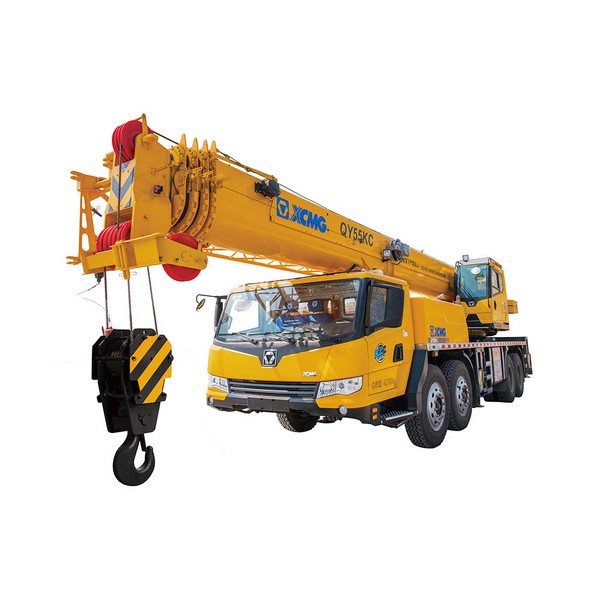

QY55KC hydraulic pickup truck crane for sale
The QY55KC hydraulic pickup truck crane adopts a 5-section telescopic boom, optimized U-shaped section, and high-strength steel plate.
Model: QY55KC
Max. rated lifting capacity: 55t
Minimum turning diameter: 24m
Wheelbase: 1470+4300+1350mm
描述
Product Introduction
The QY55KC hydraulic pickup truck crane adopts a 5-section telescopic boom, optimized U-shaped section, and high-strength steel plate, and the lifting performance of the boom is always in the leading position in the domestic industry. Through the overall optimized calculation and optimized layout, the performance is maximized under the condition of the lowest vehicle weight, and the operating performance is ahead of its peers.
Main Parameters
Item | Unit | Parameter |
Overall length | mm | 13900 |
Overall width | mm | 2800 |
Overall height | mm | 3675 |
Wheelbase | mm | 1470+4300+1350 |
Minimum turning diameter | m | ≤24 |
Top speed | km/h | ≥90 |
Engine model | - | D10.38-50 |
Engine rated power | kw/(r/min) | 276/2000 |
Maximum grade | % | ≥45 |
Max. rated gross lifting weight | t | 55 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Performance Characteristics
Features of QY55KC hydraulic pickup truck crane：
1. Embedded boom head reduces torsion, side bending, sliding block, and boom when lifting weight
Point contact or line contact; the plug-in slider increases the effective lap length of the boom, which can effectively avoid local instability. Proprietary telescopic technology to improve the active safety of the telescopic system.
2. The system adopts independent flow distribution technology. When the flow required by the actuator is greater than the flow of the pump, the system will also distribute the flow to each actuator in proportion, which greatly improves the performance of the compound action.
3. The system realizes the confluence of double pumps through the actions of telescopic, bluffing, and hoisting, which effectively improves the working efficiency of telescopic, bluffing, and hoisting, and meets the needs of the market and customers.
4. Upgrade the heat dissipation system, improve the heat dissipation capacity of the vehicle, optimize the radiator installation structure, and increase the configuration of double windshields; increase the system exhaust port to further improve the heat exchange efficiency of the heat dissipation system.
- All relevant spare parts for the QY55KC hydraulic pickup truck crane are available.
