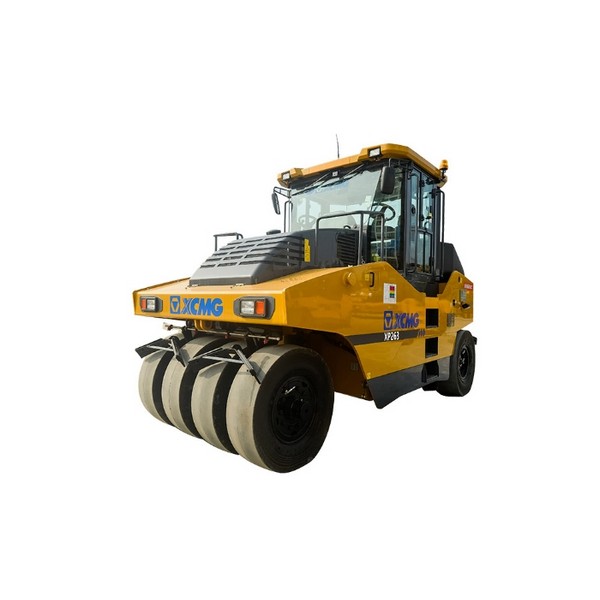

XP263 pneumatic road roller from factory for sale

The XP263 pneumatic road roller from the factory is a high-capacity pneumatic tire roller that is developed to fulfill market demands.

Model: XP263
Total weight: XP263kg
Rated power: 132kw
Dimensions (L×W×H): 4925*2530*3450mm

描述

Product Introduction

The XP263 pneumatic road roller from the factory is a high-capacity pneumatic tire roller that is developed to fulfill market demands. It uses pneumatic tires as a working mechanism for compacting laid materials. It is mostly used for asphalt pavement compacting, foundation layer, secondary foundation layer, dam, and filling engineering. It’s also an excellent set of compacting equipment for highway, airport, port, dam, and industrial construction projects.

Main Parameters

Item

Unit

Parameter

Operating weight

kg

26300

Dimensions

mm

4925*2530*3450

Max. gradeability

%

30

Rated power

kw

132

Engine calibration speed

r/min

1800

Working width

mm

2360

Number of tires

-

4+5

Water tank capacity

L

650

Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.

Performance Characteristics

Features of XP263 pneumatic road roller:

1. Equipped with Shangchai low-speed electronically controlled engine, by optimizing the power system, the optimal fuel consumption working area is realized, the comprehensive fuel saving is 10%, and the noise is reduced by 2 decibels;

2. The arrangement of front four and rear five tires is adopted, the compaction depth is large, and the compaction efficiency is high;

3. The hydraulic torque converter and power-shift gearbox with stepless automatic speed change make the roller have automatic adaptability, improve the transmission stability of compaction, and realize two-speed stepless speed change controlled by an electronic control handle;

4. The patented dual-circuit all-wheel braking technology has a short braking distance and is suitable for mountain operations to ensure human-machine safety;

5. It can be equipped with a 360 surround view and a rear auxiliary braking system for safer driving.

6. It can be equipped with oil spraying technology, which can effectively avoid the adhesion of asphalt to the tire surface, further improve the smoothness of the road surface, and avoid the safety hazard of manual oiling.

  • All the spare parts of the XP263 road roller are available.
