Crank mechanism 920871.0112 engine spare parts

描述

Crank mechanism 920871.0112 engine spare parts for sale :

Product introduction:

The Kalmar reach stacker DRF450 spare parts and engine mechanical parts.

Product advantages:

1. High-requirements quality management.
2. Use high-quality materials.
3. More accurate matching size.
4. Reduce the risk of damage.
5. Factory direct sales, price discount.

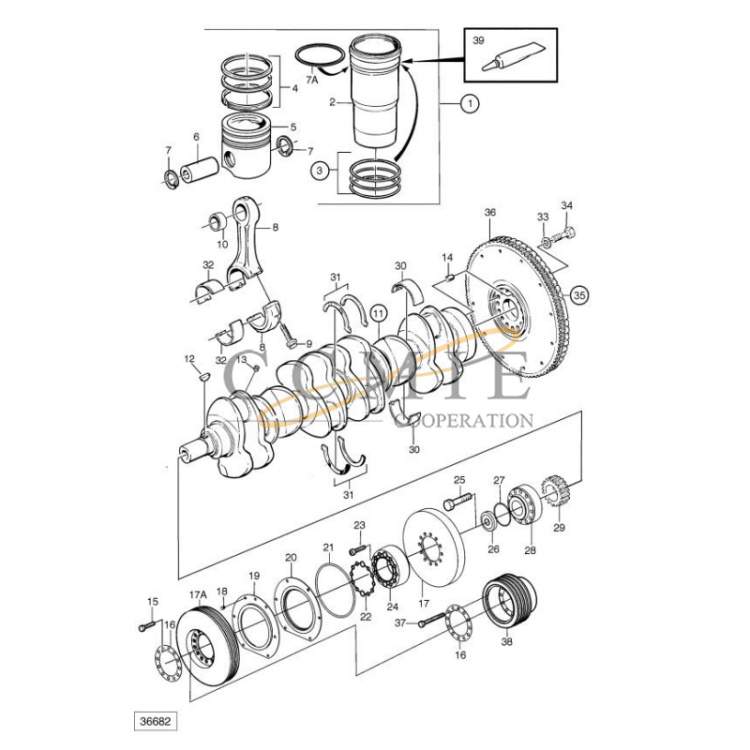

Details of Crank mechanism 920871.0112 engine spare parts:



920871.0112 Engine
1 – 923976.4321 Cylinder liner kit
2 – Cylinder liner SEE POS. 1
3 – 923705.0173 Sealing ring kit
4 – Piston ring kit N.S.S., SEE POS. 1
5 – Piston SEE POS. 1
6 – 923976.0007Pin
7 – 923705.0172 Lock ring
7A – 923976.0008 Shim TJL=0,20MM
– – 923976.0009 Shim TJL=0,30MM
– – 923976.0010 Shim TJL=0,50MM
8 – 923976.0011 Connecting rod
9 – 923829.0481 Screw
10 – 923705.0176 Bushing
11 – 923976.0012 Crankshaft
12 – 923976.0013Key
13 – 923349.0929 Plug
14 – 923976.0014 Pin
15 – 923976.0015 Screw
16 – 923976.0016 Washer
17 – 923976.0017 Vibration damper
17A – 923976.0018 Pulley
18 – 923107.0359 Screw
19 – 923976.0019 Dust shield
20 – 923976.0020 Seal ring
21 – 923976.0021 O-ring
22 – 923976.0022 Seal ring
23 – 923976.0023 Screw
24 – 923976.0024 Carrier
25 – 923976.0025 Screw
26 – 923107.0774 Washer
27 – 923976.0026 O-ring
28 – 923976.0027 Hub
29 – 923976.0028 Gear
30 – 923976.4323 Base bearing kit STD
– – Bearing cup UPPER, SEE 923976.4323
– – Bearing cup LOWER, SEE 923976.4323
– – 923976.4324 Base bearing kit UD=0,25MM
– – Bearing cup UPPER, SEE 923976.4324
– – Bearing cup LOWER, SEE 923976.4324
– – 923976.4325 Base bearing kit UD=0,50MM
– – Bearing cup UPPER, SEE 923976.4325
– – Bearing cup LOWER, SEE 923976.4325
– – 923976.4326 Base bearing kit UD=0,75MM
– – Bearing cup UPPER, SEE 923976.4326
– – Bearing cup LOWER, SEE 923976.4326
– – 923976.4327 Base bearing kit UD=1,00MM
– – Bearing cup UPPER, SEE 923976.4327
– – Bearing cup LOWER, SEE 923976.4327
31 – 923976.0035 Thrust washer kit STD
– – 923976.0036 Thrust washer kit UD=0,1MM
– – 923976.0037 Thrust washer kit UD=0,2MM
32 – 923976.0038 Crankshaft bearing kit STD
– – 923976.0039 Crankshaft bearing kit UD=0,25MM
– – 923976.0040 Crankshaft bearing kit UD=0,50MM
– – 923976.0041 Crankshaft bearing kit UD=0,75MM
– – 923976.0042 Crankshaft bearing kit UD=1,00MM
– – 923976.0043 Crankshaft bearing kit UD=1,25MM
33 – 923976.0044 Washer
34 – 923976.0045 Screw
35 – 923976.4328 Flywheel
36 – 923976.3349 Gear rim
37 – 923976.0047 screw
38 – 923976.0048 Pulley
39 – 923107.0308 Sealing compound 304ML
– – 923705.0180 Sealing compound 10G

CCMIE Group started to sell spare parts for XCMG, Shantui, SANY, Kalmar, SDLG， Komatsu, and Cummins engines in 2011. We have established four spare parts warehouses in Xuzhou, Jining, Kunshan, and Changsha in China, providing customers worldwide with a wide variety of high-quality spare parts. Our spare parts system can provide you with accurate and competitive prices in the shortest possible time. We are confident that we will become your excellent business partner!

1. As accessories’ prices fluctuate wildly, please consult us for details such as specific prices and shipping costs!

2. There are many kinds of accessories, which cannot be displayed one by one. We can find the correct accessories if you have the accessory part number/accessory nameplate/picture/machine nameplate!

3. We have a large inventory of commonly used spare parts in our warehouse, which can be delivered within three days!

Our company also supplies the four-wheel area of ​​the chassis parts of bulldozers and excavators. The products are as follows:
(1) Shantui four-wheel area: Shantui guide wheel, Shantui drive wheel, Shantui support sprocket, Shantui drive wheel, Shantui tension, Shantui professional oil, Shantui sprocket tooth block, Shantui knife Angles, Shantui blades, Shantui construction machinery bolts, Shantui chain rails, Shantui track shoes, Shantui bucket teeth.
(2) Four-wheel belt: PC60. pc100. pc120, PC130. PC200, pc220. pC300. PC360. Pc400 series excavator driving wheels, guide wheels, tug wheels, driving teeth, tensioning devices, and chains.
(3) Yuchai four-wheel area: Yuchai yc85 driving wheel, Yuchai yc85 supporting wheel, Yuchai yc85 tensioning device, Yuchai 55 guiding wheel, Yuchai yc55 driving wheel, Yuchai yc55 tensioning device.
(4) Kobelco four-wheel area: Kobelco sk200-3 driving wheel, Kobelco 200-6 supporting wheel, Kobelco 200-3 supporting wheel, Kobelco 200-6 driving wheel.
(5) Sumitomo four-wheel area: Sumitomo 120 driving wheels, Sumitomo 200 driving wheels, Sumitomo 200 supporting wheels.
(6) Carter’s four-wheel area: Carter driving wheels, Carter supporting wheels, Carter guiding wheels,
(7) Doosan four-wheel area: Doosan dh55 driving wheels, Doosan dh220 driving wheels, Doosan dh220 supporting wheels.
(8) Three-one four-wheel belts: Three-one sy130 supporting wheels, three-one sy130 driving wheels, three-one 300 supporting wheels, and three-one 300 driving wheels.
