LW300KN 3 Ton Wheel Loader
The LW330KN wheel loader is a long-wheelbase model based on the classic LW300K, with new matching and optimization of each system and an overall improvement in the performance of the whole machine.
Model: LW300KN
Type: Front loader
Machine weight: 10900kg
Rated bucket capacity: 1.8m³
Rated loading capacity: 3000kg
Rated power: 92kW
Enquiry about LW300KN 3 Ton Wheel Loader
Description
Product Introduction
When compared to similar products, the LW300KN 3 ton wheel loader stands out as an outstanding representative of the industry’s super-heavy-duty models, boasting remarkable advantages in terms of “High energy-conservation, efficiency, reliability, and comfort.” It is widely applicable for earthmoving projects, aggregate yards, municipal constructions, and other bulk material transports.
Outline Dimensions
Main Specifications
Item | Unit | Parameter |
Rated operating load | kg | 3000 |
Bucket capacity | m³ | 1.5~2.5 |
Machine weight | kg | 10900±200 |
Dump clearance at maximum lift | mm | 2770~3260 |
Reach at maximum lift | mm | 1010~1210 |
Wheel base | mm | 2900 |
Overall machine dimension L×W×H | mm | 7245*2482*3320 |
Tread | mm | 1850 |
Rated Power/Speed | kW/rpm | 92/2000 |
Hydraulic cycle time-raise | s | 5.4 |
Total hydraulic cycle time | s | 9.3 |
Min. turning radius over tyres | mm | 5170 |
Tyre size | 17.5-25-12PR | |
Gradeability | ° | 28 |
Articulation angle | ° | 38±1 |
Engine model | WP6G125E201 | |
Max.breakout force | kN | 130 |
Travel speed ( I-gear F/R ) | km/h | 12/16 |
Travel speed ( II-gear F/R ) | km/h | 38/- |
Fuel Tank | L | 170 |
Hydraulic Tank | L | 175 |
Max.horse power | kN | 95 |
Performance Characteristics
* Patented heavy-duty drive system assembly
* Box frame structure of super-strong carrying capacity
* Comprehensive optimized working device
* As the sole low speed engine energy-conservation product among the industry’s 3t loaders, it’s leading the industry’s energy-conservation trend.
* The full-view cab sufficiently takes in consideration the human-machine functions to realize high operation safety and comfort.
* Undertaking the concept of “ground maintenances”, all maintenance locations are scientifically arranged to ease the checking and maintenances.
Diversified attachments
Clamp: For grab and transport of various woods and tubing.
Snow plough: For snow removing in roads and urban streets.

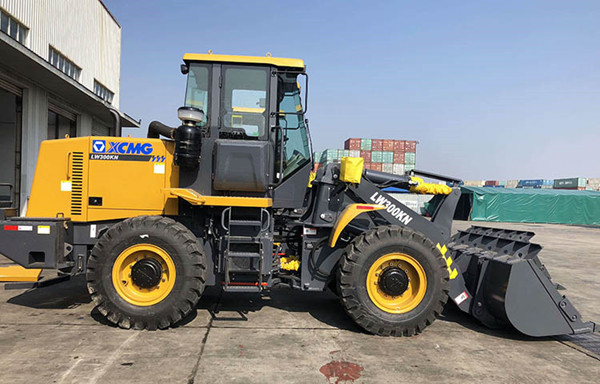

LW300KN 3 Ton Wheel Loader Images
