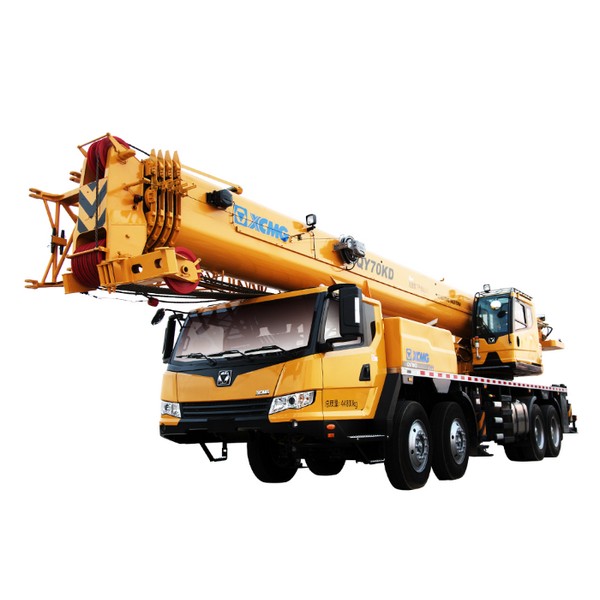

QY70KD 70 ton truck crane for sale

QY70KD 70 ton truck crane for sale

The QY70KD 70-ton truck crane has a compact structure, excellent passability, versatile maneuverability, a large outrigger span, and superior performance.

Model: QY70KD
Max. rated lifting capacity: 70t
Minimum turning diameter: 24m1470+4500+1350
Wheelbase: 1470+4500+1350mm

描述

Product Introduction

The QY70KD 70-ton truck crane has a compact structure, excellent passability, versatile maneuverability, a large outrigger span, and superior performance. It is widely used on construction sites, bridges, oil fields, urban redevelopment, transportation, ports,  mines, and other difficult working situations.

Main Parameters

Item

Unit

Parameter

Overall length

mm

14700

Overall width

mm

2790

Overall height

mm

3820

Wheelbase

mm

1470+4500+1350

Minimum turning diameter

m

≤24

Top speed

km/h

90

Engine model

-

D10.38-50/SC10E380Q5

Engine rated power

kw/(r/min)

276/1900   279/1900

Maximum grade

%

≥45

Max. rated gross lifting weight

t

70

Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.

Performance Characteristics

1. A six-axle chassis with a seven-section main boom provides superior overall driving performance.

2. High-working-efficiency luffing jib with no steps

3. The car offers a high level of driving safety thanks to a number of auxiliary braking systems.

4. High-reliability and passability self-developed leaf spring suspension system

5. Micro-motion control technique for lifting and slewing, smooth and dependable operation, precise micro-motion

6. A new look to usher in a new generation of classics

7. More pleasant driving operation thanks to an all-around humanized design.

8. Improves operation safety and convenience with wireless remote control, fuzzy functioning condition inquiry, and other services.

Product Images
