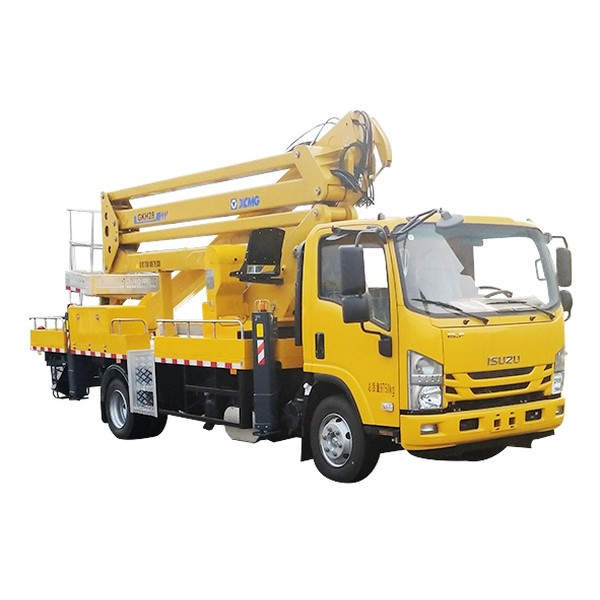

XGS5100JGKQ6 hybrid boom lift aerial work vehicle

The XGS5100JGKQ6 hybrid boom lift aerial work vehicle has compact structure, small driving size, large operating parameters and high efficiency.

Model: XGS5100JGKQ6
Max.working height: 28m
Driving state size: 8150*2350*3400mm
Rated load: 200kg


Enquiry about XGS5100JGKQ6 hybrid boom lift aerial work vehicle

Description

Product Introduction

XGS5100JGKQ6 hybrid boom lift aerial work vehicle is a rice-counting hybrid arm product developed for high-end customers. The model is a high-tech product integrating electromechanical and hydraulic, which is used for indoor and outdoor high-altitude operations by using vehicle power and fixed on the vehicle.

The hybrid boom truck has a complicated structure. The working arms are telescopic and articulated. High-strength and lightweight materials are required for the boom. The control system is also more complicated, as is the safety protection. The boom form has undergone numerous alterations., When operating, it can combine the benefits of both the folding arm and the telescopic arm car, providing not only a strong ability to cross barriers, but also a high level of productivity.

The hybrid boom truck has the smallest storage space at the same operational height. High-altitude (below the support surface of the feet) aerial work trucks are all hybrid boom type, and the flexible combination of the boom form can enable the work truck to achieve some specific functions, such as low-altitude (below the support surface of the feet) operation, horizontal expansion and contraction at high places, crossing low and high obstacles, and high cost performance.

Main Parameters

Item

Unit

Parameter

Chassis model

-

QL1110ANLAY

Driving state size

mm

8150*2350*3400

Model of engine

-

4HK1-TCG61

Power

kW

139

Max.working height

m

28

Max.working radius

m

14

Rotation angle

°

±360

Rated load

kg

200

The number of occupants in the cab

-

3

Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.

Performance Characteristics

* The full range of operation performance reduces the limit, the operation is flexible, and the system impact is small.

* It can realize stepless speed regulation, comfortable operation, smooth movement and good fretting.

* It can be operated at both the turntable and the working bucket, with high stability.

* The horizontal and vertical outriggers can be operated simultaneously or separately to suit different venues.

* A number of safety protection measures to ensure the safety of high-altitude workers and vehicles.

  • All the spare parts of XGS5100JGKQ6 hybrid boom aerial work vehicle are available.
