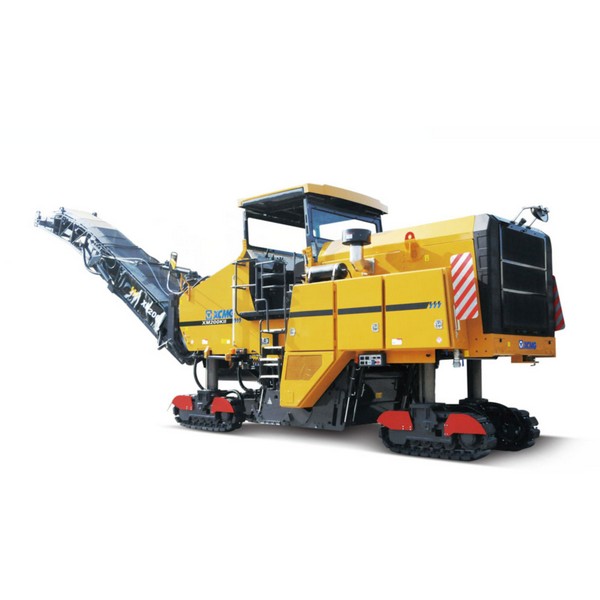

XM200KII asphalt milling machine for sale

XM200KII asphalt milling machine for sale

The XM200KII asphalt milling machine for sale is used to maintain asphalt concrete pavements and is primarily used for excavation…

Model: XM200KII
Engine brand: Cummins
Working weight: 34000kg
Maximum milling width: 2000mm

描述

Product Introduction

The XM200KII asphalt milling machine for sale is used to maintain asphalt concrete pavements and is primarily used for excavation and refurbishment of vast portions of highways, city and town roads, airports, and goods yards, and parking lots, among other things. It can remove upheaval, oil waves, overlapping curves, tracks, and other pavement features; it can also excavate the pit slot and grooves of the pavement, and it can be used for cement pavement napping and surface course milling faulting.

Main Parameters

Item

Unit

Parameter

Engine brand

-

Cummins

Rated power/speed

kW/rpm

470/2100

Working weight

kg

34000

Maximum milling width

mm

2000

Maximum milling depth

mm

330

Number of tools

-

146

Milling wheel diameter

(with tool)

mm

1020

Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.

Performance Characteristics

1. The engine’s three-speed milling technology is adopted, which can adapt to the engine is always in the best working state from roughing to thick layer milling, and the efficiency is the highest;

2. The intelligent temperature control cooling system with independent monitoring of water temperature, oil temperature and intercooler is adopted to reduce starting resistance, fuel consumption, noise pollution, and power loss;

3. A new generation of customized imported pattern belts, with reduced pitch, smoother discharge, and higher reliability;

4. Patented sprinkler dust reduction technology: spray dust at the discharge port to reduce dust pollution to the environment;

5. Optional vacuum dust removal system reduces dust around the milling chamber and conveyor belt.

6. It has four steering modes (front-wheel steering, rear-wheel steering, turning, wedge), with good maneuverability.

7. The one-button construction button has the functions of the one-button hanging of the milling drum, raising the speed of the milling drum, turning on the water, and turning on the feeding belt, making the operation more convenient;

8. The one-button obstacle crossing button has the one-button obstacle-surmounting button—over the obstacle—pressing the one-button obstacle crossing button to recover, which greatly simplifies the operation difficulty of the operator;

Product Images
