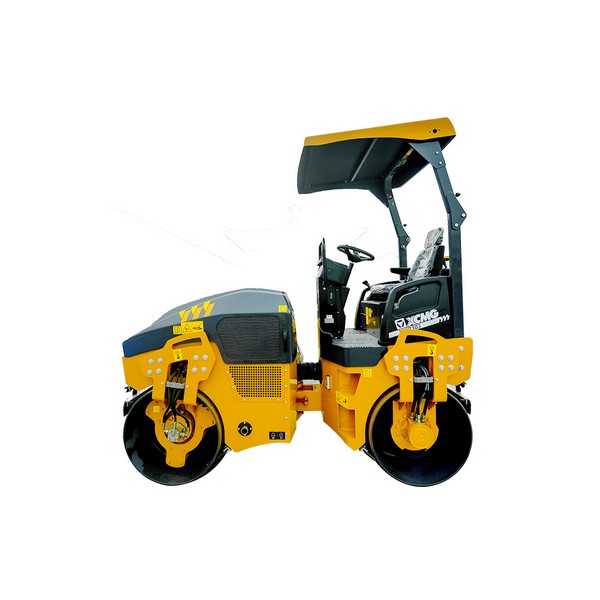

XMR303 small road roller for sale
The XMR303 small road roller is a 3t operational weight light-duty vibratory road roller. It’s primarily used for compacting surface layers and curbs for asphalt and cement projects,
Model: XMR303
Total weight: 3100kg
Rated power: 28.5kw
Dimensions (L×W×H): 2682*1328*2722mm
描述
Product Introduction
The XMR303 small road roller is a 3t operational weight light-duty vibratory road roller. It’s primarily used for compacting surface layers and curbs for asphalt and cement projects, as well as base and sub-base layers, sand, and gravel materials. It’s also an excellent compacting machine for parking lot construction, compacting of driving lanes, sidewalks, bikeways, and road maintenance. It comes with a mud scraper and a sprinkler and has a small amplitude and high frequency.
Main Parameters
Item | Unit | Parameter |
Operating weight | kg | 3100 |
Dimensions | mm | 2682*1328*2722 |
Vibration frequency | Hz | 60 |
Rated power | kw | 28.5 |
Max. gradeability | % | 30 |
Exciting force | kN | 32 |
Static linear load | N/CM | 129/129 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Performance Characteristics
Features of XMR303 mini road roller:
1. All-wheel hydraulic drive, strong climbing ability
2. Three-stage braking to ensure safe and reliable driving
3. Equipped with a rollover protection frame to prevent the roller from rolling over
4. Three-stage vibration reduction, better vibration reduction effect
5. Small size, compact structure, easy to transport, large working force, and high efficiency. It can be used with large rollers.
6. The adjustable and foldable operating handle brings a comfortable operating environment to the operator, and it is easy to transport or store after being folded.
- All the spare parts of the XMR303 road roller are available.
Product Images
