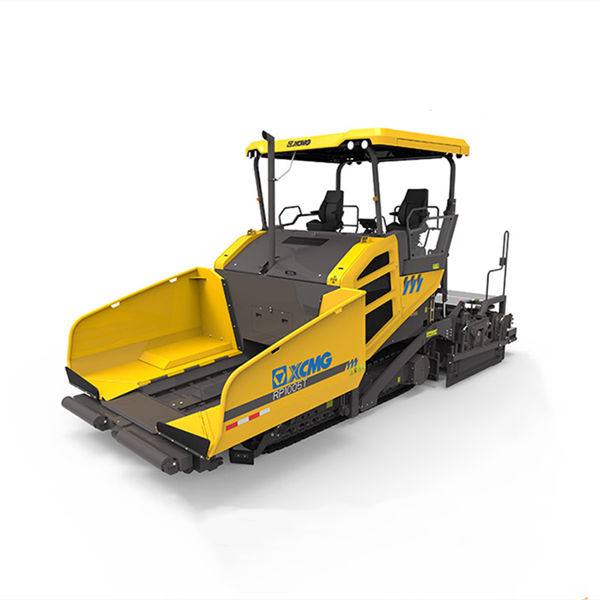

New 3-9m asphalt pavers RP1005T paver manufacturers

New 3-9m asphalt pavers RP1005T paver manufacturers adopt a new generation of an intelligent control system, 10-inch large touch screen.

Model: RP1005T
Total mass: 27.5～29t
Maximum paving width: 9m
Dimensions (L×W×H): 7640×3000×4120mm


Enquiry about New 3-9m asphalt pavers RP1005T paver manufacturers

Description

Product Introduction

New 3-9m asphalt pavers RP1005T paver manufacturers adopt a new generation of intelligent control systems, a 10-inch large touch screen, and wired/wireless dual operation mode, bringing a new control experience. It has dependable quality, great performance, and high-cost performance as a new generation of classic inheritance, and can be widely employed in the laying of asphalt surface layers and stabilized soil foundation layers of highways at all levels.

Main Parameters

Item

Unit

Parameter

Basic paving width

m

3.0～9.0

Maximum paving width

m

9

Maximum paving thickness

mm

500

Theoretical productivity

t/h

1000

Hopper capacity

t

15

Engine power

kW

214

Total Weight

t

27.5～29

Dimensions

mm

7640×3000×4120

Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.

Performance Characteristics

3-9m asphalt paver RP1005T features：

1. It adopts optimized power system matching, adopts a super-power engine, and has functions such as an intelligent variable speed fan, which can save energy and reduce noise.

2. Standard 9 meters fully telescopic screed, stepless expansion range of 3 to 9 meters, with superior working conditions applicability.

3. Optional 10m four-support hydraulic telescopic screed, the overall rigidity is increased by 30%, and the 4/9mm two-speed high-precision adjustable amplitude mechanism can achieve higher pre-compression compactness.

4. The material distribution device can be lifted and lowered with one key, and the lifting range is 300mm, which can meet the needs of different working thickness conditions.

5. Brand new appearance, human-computer interaction is more humanized.

  • All the spare parts of the 3-9m asphalt pavers RP1005T paver manufacturers are available.
