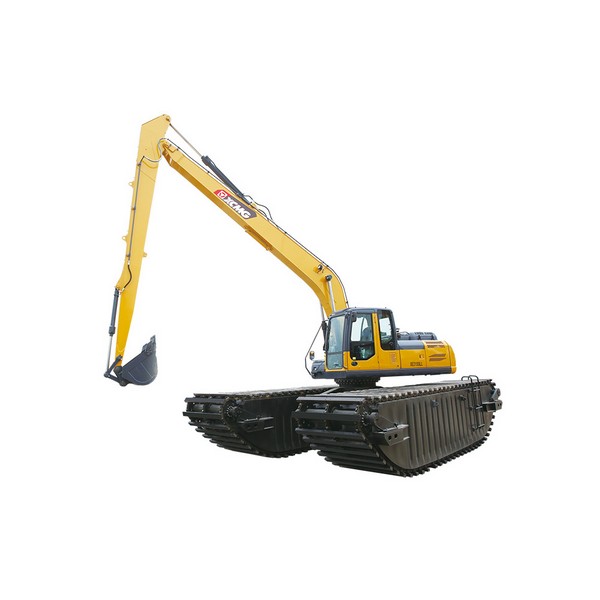

XE215SLL amphibious excavator for sale
The XE215SLL amphibious excavator is commonly employed in river dredging, watershed management, wet embankment, and other work.
Model: XE215SLL
Operating weight: 34260kg
Bucket capacity: 1m³
Bucket digging force: 149kN
描述
Product Introduction
The XE215SLL amphibious excavator is commonly employed in river dredging, watershed management, wet embankment, and other work on rivers, lakes, seas, beach resources development, and environmental remediation operations. The vehicle has an imported engine and hydraulic system, which improves operational efficiency and reliability. The walking device with a sealed box has 5 times the grounding area of a regular excavator and may be used in very soft ground, wetlands, and swamps. Walking in the water is made safer and more reliable with three rows of walking chains.
Main Parameters
Item | Unit | Parameter |
Operating weight | kg | 34260 |
Bucket capacity | m³ | 1 |
Engine Model | - | Isuzu |
Rated power/speed | kw/rpm | 135/2050 |
Travel speed（H/L） | km/h | 3.2 |
Bucket digging force | kN | 149 |
Maximum excavation depth | mm | 5720 |
Swing speed | r/min | 13.2 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Performance Characteristics
Features of the XE215SLL amphibious excavator:
1. The engine is powerful, sturdy, and durable, with low fuel consumption, and can meet all application needs. Its fuel efficiency ratio is ahead of the models of the same tonnage at home and abroad.
2. The hollow pontoon structure provides enough buoyancy, which can make the whole machine float on the water surface, ensure that the whole machine can be transferred to deeper waters, and can ensure the maximum working water depth of 14m.
3. Three-row chain structure improves the safety of walking in water. The unique structure makes disassembly and assembly more convenient.
4. The traveling mechanism adopts strengthened key parts for the chain rail joints, which greatly improves the service life of the crawlers.
- All relevant spare parts for the XE215SLL amphibious excavator are available.
