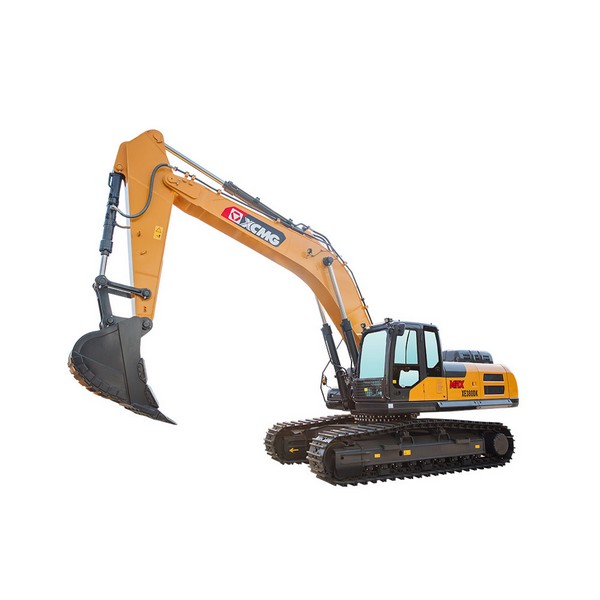

XE380DK mining excavator and parts for sale

XE380DK mining excavator and parts for sale

The XE380DK mining excavator and parts include a standard expanded and reinforced chassis structure, which improves mine work stability and reliability.

Model: XE380DK
Operating weight: 38200kg
Bucket capacity: 1.9-2.1m³
Rated power/speed: 214/2100kw/rpm

描述

Product Introduction

The XE380DK mining excavator and parts include a standard expanded and reinforced chassis structure, which improves mine work stability and reliability. To provide oil feeding on demand, the new positive flow sub-pump operates the main pump independently, optimizing speed detection and load adaptive control. Inside the high-performance silicone oil, the shock absorber is a damping spring, which effectively isolates the shock wave. The intelligent control system for multi-functional machines can be used in a variety of situations. It is capable of meeting a wide range of operational requirements.

Main Parameters

Item

Unit

Parameter

Operating weight

kg

38200

Bucket capacity

m³

1.9-2.1

Engine Model

-

Cummins

Rated power/speed

kw/rpm

214/2100

Maximum excavation depth

mm

7423

Bucket digging force

kN

292

Arm digging force

kN

209

Travel speed（H/L）

km/h

5.6/3.3

Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.

Performance Characteristics

Features of the XE380DK mining excavator and parts:

1. The low-speed, high-torque high-pressure common rail engine consumes less fuel while producing more power;

2. The intelligent electronic control system achieves comprehensive management of the engine speed and hydraulic pump input power, as well as fault monitoring and diagnosis features.

3. The reinforced working device, in combination with the high-pressure system design, ensures that the entire machine has the strongest digging force among machines of the same level, allowing it to easily meet the demands of diverse working conditions.

4. High working efficiency due to large displacement main pump and large diameter 32NA main valve.

5. New radiator with increased heat dissipation capacity, high-altitude power control adaptive system, and improved environmental adaptability

Product Images
