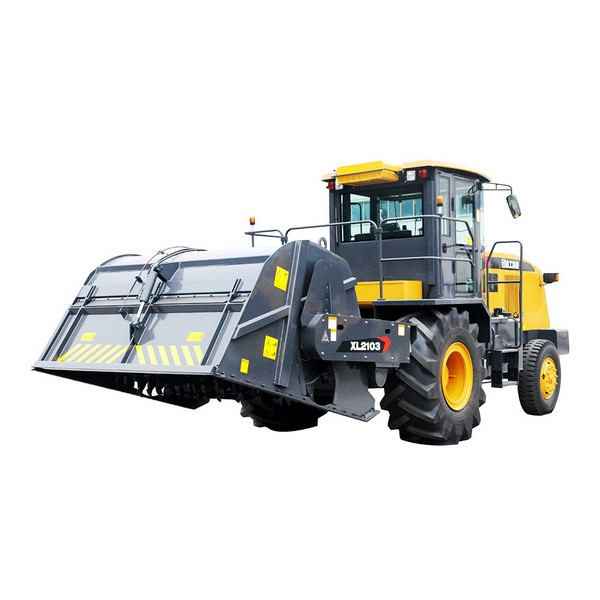

XL2103 road soil stabilizer machine for sale
XL2103 soil stabilizer is suitable for on-site mixing of strata and bottom stabilized oil in highways, urban roads, squares, docks, parking lots and other projects.
Model: XL2103
Total weight: 15600kg
Maximum Milling width: 2100mm
Dimensions (L×W×H): 8740×2765×3450mm
Enquiry about XL2103 road soil stabilizer machine for sale
Description
Product Introduction
XL2103 road soil stabilizer machine is suitable for on-site mixing of strata and bottom stabilized oil in highways, urban roads, squares, docks, parking lots and other projects, and can also mix lime-lime soil, lime-ash stabilized aggregate, stabilized gravel in different proportions on site.
Main Parameters
Item | Unit | Parameter |
Working weight | kg | 15600 |
Dimensions | mm | 8740×2765×3450 |
Rated speed | rpm | 1900 |
Rated power | kw | 294 |
Working speed | km/h | 0~3 |
Traveling speed | km/h | 0-23 |
Maximum milling width | mm | 2100 |
Maximum milling depth | mm | 400 |
Number of tools | - | 168 |
Rotor diameter with tool | mm | 1280 |
Hydraulic oil tank | L | 450 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Performance Characteristics
* Weichai WP12 series EFI engine, low fuel consumption and high power; fitted display can read a variety of data and has advanced capabilities such as engine fault diagnosis and fault alarm.
* The transmission system is made up of an engine and a transfer case, with the transfer case connected to the rotor pump, traveling pump, and auxiliary pump, making maintenance and repair a breeze.
* Walking system: front axle steering, rear axle driving, with two gears on the drive axle, one for walking and one for work. Low-pressure wide-base and deep pattern herringbone tires with a big adhesion and strong anti-skid ability are mounted on the driving axle.
* The braking system uses an air brake system with a hand brake and a foot brake, with the hand brake serving as a parking brake and the foot brake serving as a service brake, making it safe and reliable.
* The cab has a wide-body structure, dual-purpose air conditioners, fan devices, MP3 and radio devices, and is easy to operate.
* The lighting system is completely set up. The rear of the machine, the cab, the edge of the operation, and the front of the machine all have good lighting when working at night.
- All the spare parts of XL2103 road soil stabilizer are available.
