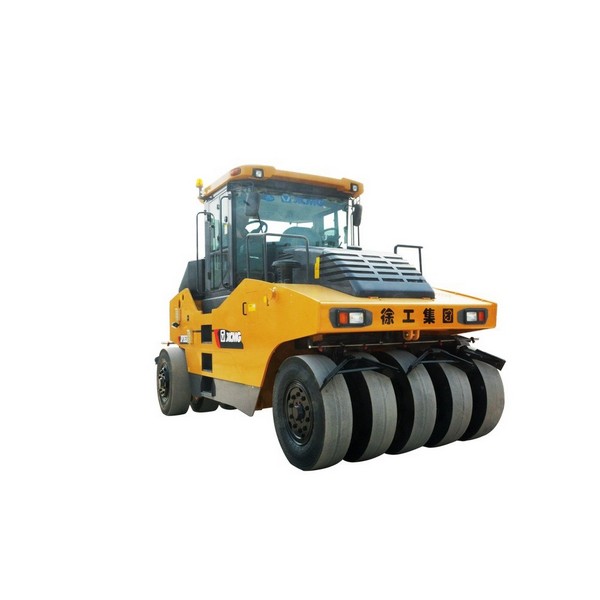

XP263K pneumatic road roller China
The XP263K pneumatic road roller China is a large-tonnage tire roller that is built to meet market requirements.
Model: XP263K
Total weight: 26300kg
Rated power: 132kw
Dimensions (L×W×H): 4925*2851*3470mm
描述
Product Introduction
The XP263K pneumatic road roller China is a large-tonnage tire roller that is built to meet market requirements. It compacts laid materials with pneumatic tires as a working device. Asphalt pavement compacting, foundation layer, secondary foundation layer, dam, and filling engineering are the most prevalent applications. For high-grade motorways, airports, ports, dams, and industrial development projects, it is the ideal compacting equipment.
Main Parameters
Item | Unit | Parameter |
Operating weight | kg | 26300 |
Dimensions | mm | 4925*2851*3470 |
Max. gradeability | % | 30 |
Rated power | kw | 132 |
Engine calibration speed | r/min | 1800 |
Working width | mm | 2750 |
Number of tires | - | 5+6 |
Minimum turning radius (outside) | mm | 7820 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Performance Characteristics
Features of XP263K road roller supplier:
1. The hydraulic torque converter and power-shift gearbox with stepless automatic speed change make the roller have automatic adaptability, improve the transmission stability of compaction, and the electronic control handle can realize two-speed stepless speed change;
2. Adopting the arrangement of front five and six rear tires, the compaction width is large and the compaction efficiency is high;
3. Equipped with Shangchai low-speed electronically controlled engine, by optimizing the power system, the optimal fuel consumption working area is realized, the comprehensive fuel saving is 10%, and the noise is reduced by 2 decibels;
4. Optional oil spraying technology can effectively avoid the adhesion of asphalt to the tire surface, further improve the smoothness of the road surface, and avoid the safety hazard of manual oiling.
5. Optional 360 surround view and rear auxiliary braking system for safer driving.
6. Patented dual-circuit all-wheel braking technology, short braking distance, suitable for mountain operation, ensuring human-machine safety;
- All the spare parts of the XP263K road roller are available.
