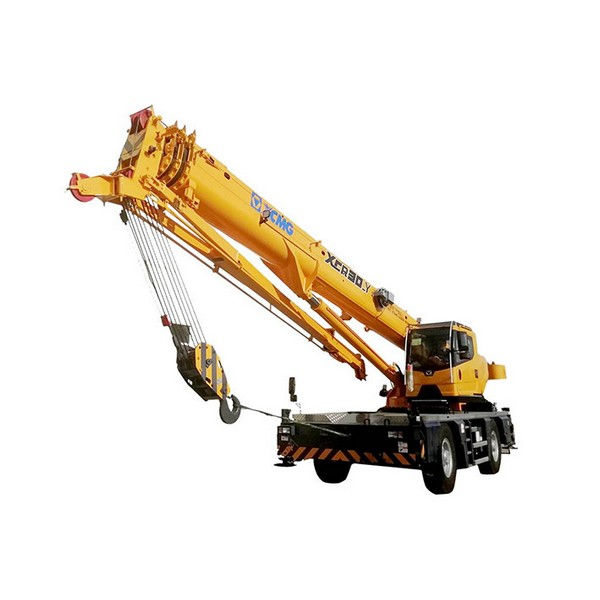

XCR30_Y 30 ton rough terrain crane from factory
The XCR30_Y 30-ton rough terrain crane from the factory is suitable for the hoisting and transhipment of heavy objects in fields (factories) such as oil fields, mines, etc.
Weight: 27574kg
Max lifting capacity: 30T
Engine rated power: 162/2000KW/r/min
Max. travel speed: 41km/h
Enquiry about XCR30_Y 30 ton rough terrain crane from factory
Description
Product Introduction
The XCR30_Y 30-ton rough terrain crane from the factory is suitable for the hoisting and transhipment of heavy objects in fields (factories) such as oil fields, mines, construction, electric power, road and bridge construction, ports, warehousing and logistics bases, industrial and mining enterprises, etc.
Main Parameters
Item | Unit | Parameter |
Max. rated lifting capacity | t | 30 |
Max. Rated Lifting Moment | kN·m | 989.8 |
Boom length | mm | 35000 |
Jib length | mm | 13000 |
Machine curb quality | kg | 27574 |
Wheelbase | mm | 3600 |
Engine rated power/speed | kW/(r/min) | 162/2000 |
Max travel speed | km/h | 41 |
Max. grade ability | % | 76 |
Max. rotation speed | r/min | 2 |
Overall length | mm | 12783 |
Overall width | mm | 2850 |
Overall height | mm | 3416 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Performance Characteristics
1. It has a two-axle loading chassis with two different drive modes, four different steering modes, and backwards and forward driving functions.
2. It has four sections of dodecagon main booms, an abdomen-placed auxiliary boom, an H-type outrigger, a fixed balancing counterweight, and three operating modes: hoisting with outriggers, hoisting with tires, and hoisting while driving.
3. The U boom and plug-in boom head give a more balanced load-carrying capacity and smoother lift.
4. Because of the unique stretch and retract technology, the boom’s stretch and retract are safer and more reliable.
5. Eight patents have been applied to the control system, making lifting, rotation, and luffing simple and reliable.
6. The innovative stretch and retract technique prevents the core pipe and cylinder from bending and the boom from breaking due to operator error, increasing the safety of the operations.
7. Eight patent procedures ensure that the lifting, rotating, and luffing systems run smoothly, efficiently, and efficiently.
8. Use a new hydraulic motor with a high starting torque to make secondary lifting safer.
- All relevant spare parts for the XCR30_Y 30-ton rough terrain crane from the factory are available.
