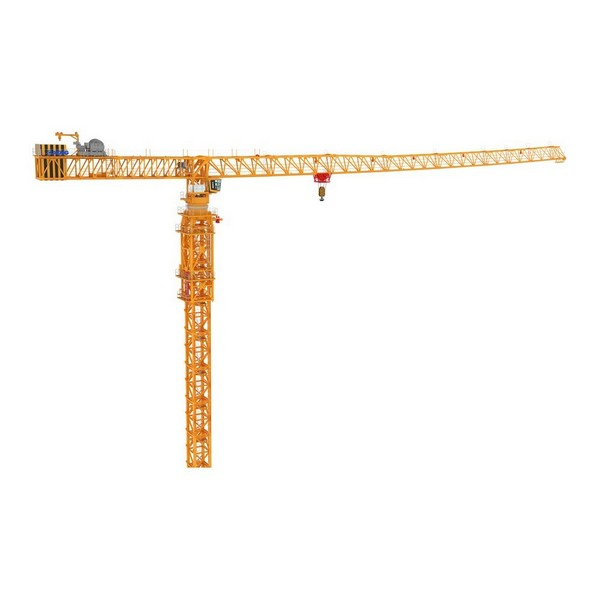

XGT2230-100S flat top tower crane China

The XGT2230-100S flat-top tower crane in China is one of the most popular models in the S series, thanks to its improved intelligence, performance, and quality.

Model: XGT2230-100S
Maximum lifting weight: 100t
Rated lifting moment: 2230t.m
Fixed height: 62.8m


Enquiry about XGT2230-100S flat top tower crane China

Description

Product Introduction

The XGT2230-100S flat-top tower crane in China is one of the most popular models in the S series, thanks to its improved intelligence, performance, and quality. Innovations and advancements have been made in the areas of safety and dependability, sophisticated intelligence, green efficiency, attractiveness, and humanization.

Main Parameters

Item

Unit

Parameter

Model

-

XGT2230-100S

Boom length/arm end lifting weight

m/t

80/22.5

Rated lifting moment

t.m

2230

Maximum lifting weight

t

100

Fixed height

m

62.8

Attachment height

m

212.8

Lifting capacity rope

m

1190

Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.

Performance Characteristics

1. The first application of high-strength cold-formed steel in the industry; the boom is lighter, the lifting performance is better than other manufacturers in the same industry, and the lightweight level is at the industry’s leading level;

2. The entire machine is outfitted with 8.8-10.9 Dacromet high-strength bolts, which are tougher, more corrosion resistant, and have a longer service life.

3. Powder electrostatic spraying technology for structural parts, automotive-grade coating level, 2 years without fading, 5 years without rust;

4. For the first time in the tower crane industry, the automobile industry’s cab design concept was implemented, and the electrophoresis treatment technology was used to build a cab that will not corrode for at least ten years. The outdoor unit of the air conditioner is built-in, and it is installed and transported as a unit to avoid damage to the unit and reduce the risk of outdoor installation and maintenance.

5. Each machine may function in a flexible, environmentally friendly, efficient, and intelligent manner thanks to the full frequency conversion control mode.

6. Control components, inverters, contactors, and other components have all been thoroughly tested and verified to assure their safety and durability; complete connector control cables save 1.5 hours of installation and disassembly time each time, and error-proof connectors improve installation. Accuracy; imported Schneider switches for the lifting weight limiter and torque limiter, 500,000 action tests, industry-leading dust and weather protection, alloy copper adjusting bolts, rust-free for 10 years;

7. For accessories, relying on a national quality inspection agency to accomplish three-level coverage of the product testing range and to conduct batch professional testing of essential components such as raw materials, high-strength bolts, and pins.
